Festool DF 500 Q-Plus 230V Domino Joining Machine 578241 With Domino Beech Range 576794

Festool DF 500 Q-Plus 230V Domino Joining Machine 578241 With Domino Beech Range 576794

The Festool DF 500 Q-Plus domino joining system is a must have tool for joiners and cabinet makers. The oval shape of the dominos provides a larger glued area and more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.

Features:
Festool DF 500 Q-Plus 230V Domino Joining Machine:

Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
Patented routing principle unique to hand-held machines for accurate work with no kickbacks
Stops that are quick and easy to adjust, for accurate results
Ergonomic shape for ease of operation in any position
Rotation-proof joint with DOMINO dowels providing maximum stability

Areas of Application:

Furniture manufacture
Shopfitting/Interior fitting
Window construction
Exhibition stand construction
For panel joins
For frame and rack joints

Festool 576794 DOMINO Beech Range:

100% rotation-proof right from the first DOMINO
All DOMINO dowels quickly at hand due to tidy storage in the Systainer
Excessive glue can escape through the lateral longitudinal grooves
Get started immediately, as the required routers are included in the set
Quick finding of the right dowel through imprinted size specifications
Specially formed glue pockets and longitudinal grooves distribute the glue evenly, for optimal joining
The cross cut of a DOMINO dowel corresponds to that of three round dowels of the same drill diameter, meaning that it is extremely steady in comparison
The laterally projecting guide ribs centre the dowel in the middle of the DOMINO milling groove and thus ensure perfect alignment of workpieces

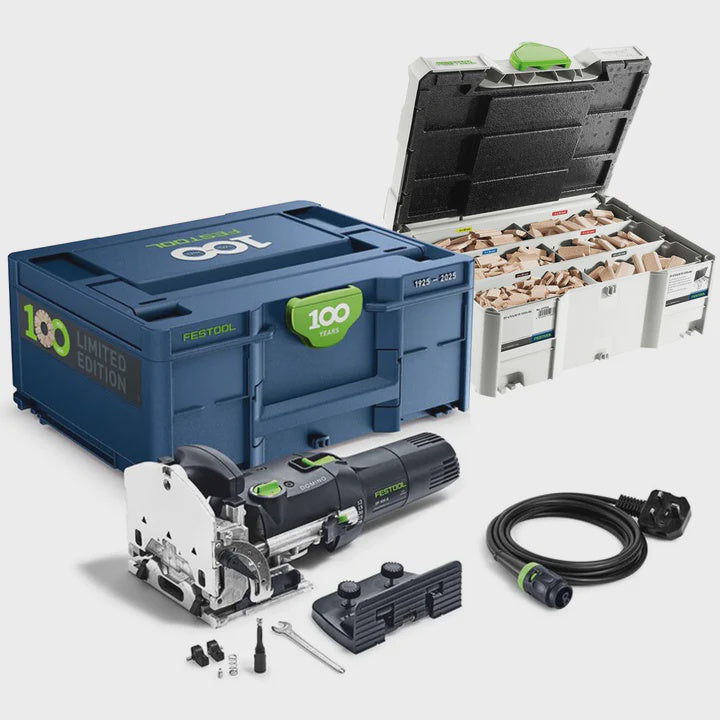

Comes With:

1 x Domino Cutter D5
1 x Additional Stop
1 x Open Ended Spanner, WAF 8
1 x Plug it-power Cable (4 m)
1 x 100 years Systainer SYS3 M 187

Festool 576794 DOMINO Beech Range Contents:

DOMINO Router for sizes 4, 5, 6, 8 and 10
DOMINO Tenon assortment 4 x 20 mm (450 pieces), 5 x 30 mm (225 pieces), 6 x 40 mm (150 pieces), 8 x 40 mm (100 pieces), 8 x 50 mm (75 pieces), 10 x 50 mm (60 pieces)
Systainer SYS3 M 187

Product Specification:
Festool DF 500 Q-Plus 230V Domino Joining Machine:

Part Number: 578241
Voltage: 230V
Power Consumption: 420W
Idle Engine Speed: 25500 min⁻¹
Depth stop for routing depth: 12, 15, 20, 25, 28 mm
Max. routing depth: 28.00 mm
DOMINO slot cutter dia.: 4, 5, 6, 8, 10 mm
Routing height adjustment: 5 - 30 mm
Mitre routing: 0 - 90 °
Dust extraction connection diameter: 27 mm
Cable length: 4.00 m
Drive type: Mains
Product weight without accessories: 3.50 kg
Transport weight incl. accessories: 5.85 kg
